Anyang USA Power Hammer and Hydraulic Press Since 1956
Latest Podcast from the Blacksmithspub

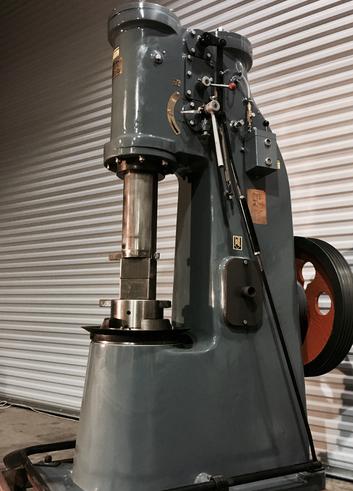

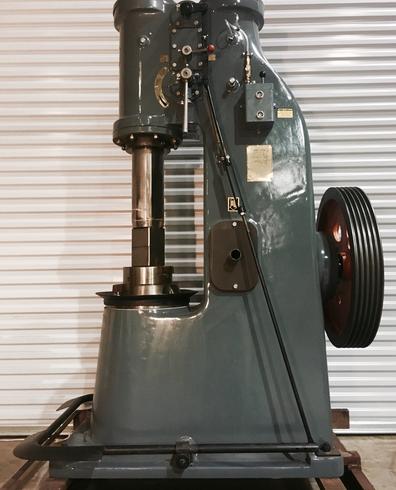

178 LB HS/ 81 KG Self Contained Power Hammer
Length 47"
Width 26.5"/
Height 85"
Note: for shop layout details ask for foundation drawings. Motor is mounted to the side of the hammer requiring more space.
Die height 37"
Die length 5.75"
Die width 4"
Beats per min 205
Weight Lbs. 6030
Motor Specs
Electrical input 3 phase
Voltage 220V
Speed/RPM 1160
Amperage 29.3
Motor HP 10
Plug Nema code L14-30P
Standard Features:
Warranty:
Frame: Lifetime from AFP
Internal wearing parts: 5 year
Motor: 3 years from WEG
USA oil flow control valves
USA Electrical components (assembled and tested in my shop)
Key out design, heavier anvil mass, deeper throat
H13 dies with holes for bolt-on tooling
WEG 10 hp three-phase motor
Motor Specs: W22 NEMA Premium Efficiency 10 HP 6P 254/6T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted | W22 | W22 | TEFC Cast Iron | General Purpose | AC Motors - NEMA | Electric Motors | WEG - Products
Cost $17,950
