Anyang USA Power Hammer and Hydraulic Press Since 1956
Latest Podcast from the Blacksmithspub
Hammer Specifications
Length 53"
Width 25"
Height 74"
Die height 37"
Die length 4.75"
Die width 3.125"
Beats/min. 220
Weight lbs. 3280
Motor Specs (Standard)
WEG High Torque
Electrical input single phase
Voltage 230
Speed RPM 1160
Amperage 22
Motor HP 5
Plug Nema Code L6-30P

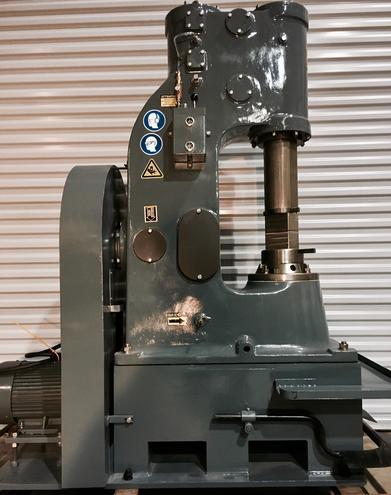

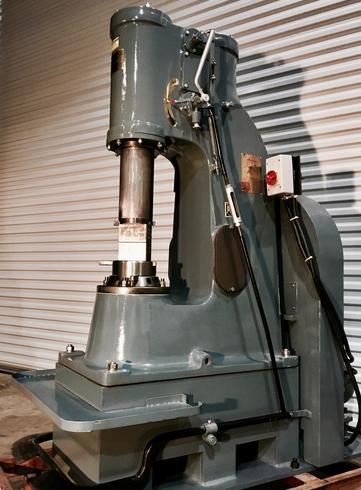

106 LB. HS/ 48.3 KG Power Hammer
Standard Features:
Warranty:
Frame: Lifetime from AFP
Internal wearing parts: 5 year
Motor: 3 year from WEG
USA oil flow control valves
USA Electrical components (assembled and tested in my shop)
Key out design, heavier anvil mass, deeper throat
H13 dies with holes for bolt-on tooling
WEG 5 hp single phase motor
Motor Specs: W22 5 HP 6P 213/5T 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted | W22 | W22 | TEFC Cast Iron | General Purpose | AC Motors - NEMA | Electric Motors | WEG - Products
Cost $12,450
